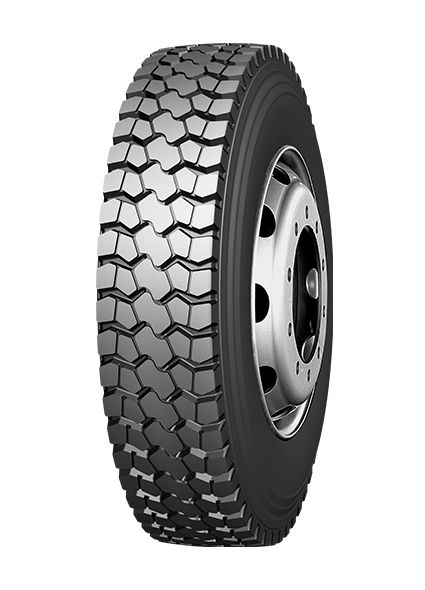

338
Deepen grooves pattern
?? Zero belt design, increase the strength of the tire body, provides tire with better loading performance and durability
?? Optimized tire structure design, can improves tire performance in parallel use under high loads
?? Unique formula design, can provide excellent tear resistance, puncture resistance and wear resistance
?? Deeper pattern deepth, increase tire driving mileage
?? Highway pattern, suitable fornormal road, urban and rural highway, speed limited to no more than 70km/h
Wheel Positions
Recommended
Allowed
Product Technical Parameters
| Tire specification | Ply | Load Index | Load(kg) | Air Pressure(k pa) | Speed Level | Measured rims | Allowable rims | New tire tread depth(mm) | 行驶面宽度(mm) | New tire designed size(mm) | |||
| Single Tire | Double Tire | Single Tire | Double Tire | Section width | Outer diameter | ||||||||
| 12R22.5 | 18 | 152/149 | 3550 | 3250 | 930 | 930 | K | 9.00 | 8.25 | 18 | 246 | 300 | 1085 |
| 13R22.5 | 18 | 154/151 | 3750 | 3450 | 830 | 830 | 9.75 | 9.00 | 20 | 248 | 320 | 1124 | 13R22.5 |
| 12.00R20 | 20 | 156/153 | 4000 | 3650 | 900 | 900 | k | 8.5 | 9.0, 8.50V | 18 | 240 | 315 | 1125 |
| 8..25R16 | 16 | 128/124 | 1800 | 1600 | 770 | 770 | L | 6.5H | 6.00G, 6.5 | 16.5 | 176 | 235 | 865 |
| 11.00R20 | 18 | 152/149 | 3550 | 3250 | 930 | 930 | K | 8.0 | 8.00V, 8.5 | 20 | 226 | 293 | 1096 |
| 12.00R24 | 20 | 156/153 | 4500 | 4125 | 900 | 900 | K | 8.5 | 8.50V, 9.0 | 18.5 | 238 | 315 | 1238 |
| 325/95R24 | 22 | 162/160 | 4750 | 4500 | 850 | 850 | K | 8.5 | 18.5 | 234 | 325 | 1228 | |
