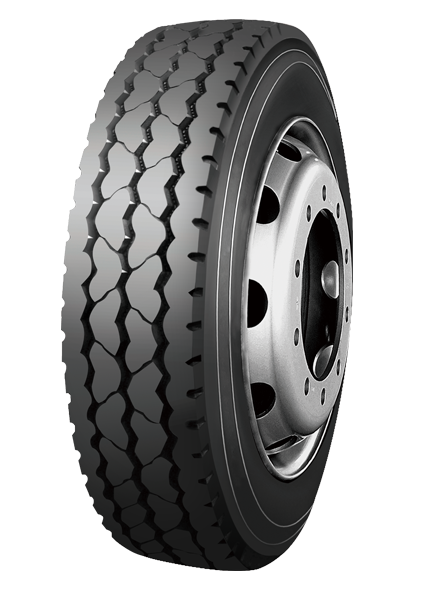

520
Special tread formula design for good heat dissipation performance
??Unique pattern design can double the tread cleanliness, no stones are caught during driving
??Special tream formula design, offers good heat dissipation performance, provides tire better wear resistance, and longer liftime
??Highway pattern, suitable for highway, general road and urban highway
Wheel Positions
Recommended
Allowed
Product Technical Parameters
| Tire specification | Ply | Load Index | Load(kg | Air Pressure(kpa) | Speed Level | Measured rims | Allowable rims | New tire tread depth(mm) | 行驶面宽度(mm) | New tire designed size(mm | |||
| Single Tire | Double Tire | Single Tire | Double Tire | Section width | Outer diameter | ||||||||
| 8R22.5 | 12 | 128/126 | 1800 | 1700 | 760 | 760 | L | 6.00 | 5.25,6.75 | 14.5 | 162 | 203 | 935 |
| 9R22.5 | 14 | 136/134 | 2240 | 2120 | 830 | 830 | L | 6.75 | 6.00、7.50 | 15 | 170 | 229 | 974 |
| 10R22.5 | 16 | 144/142 | 2800 | 2650 | 900 | 900 | L | 6.75 | 7.5 | 15 | 190 | 254 | 1019 |
| 12R22.5 | 18 | 152/149 | 3550 | 3250 | 930 | 930 | L | 9.00 | 8.25 | 15.5 | 235 | 300 | 1085 |
| 11.00R20 | 18 | 152/149 | 3550 | 3250 | 930 | 930 | L | 8.00 | 8.5,8.00V | 16 | 220 | 293 | 1085 |
| 11.00R20 | 16 | 150/147 | 3350 | 3075 | 830 | 830 | L | 8.00 | 8.5,8.00V | 16 | 220 | 293 | 1085 |
