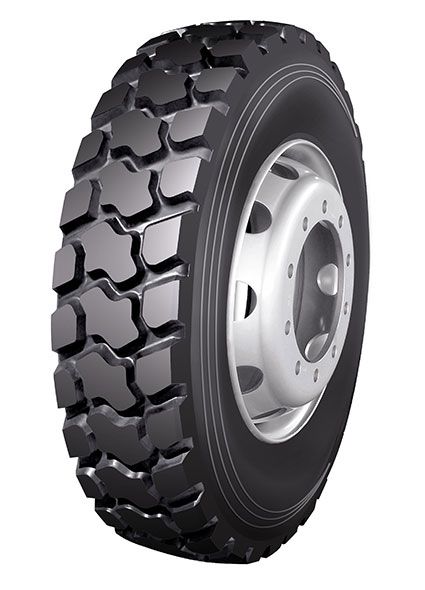

301
Unique bead structure design
Wheel Positions
Recommended
Allowed
Technical
Features
Comprehensive performance formula design, can provide excellentwear resistance, tear resistance and low heat generation performance
Technical
Features

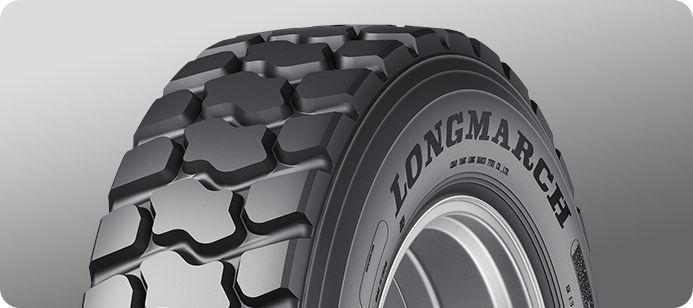

?Unique bead structure design, provides good bead durability
Technical
Features

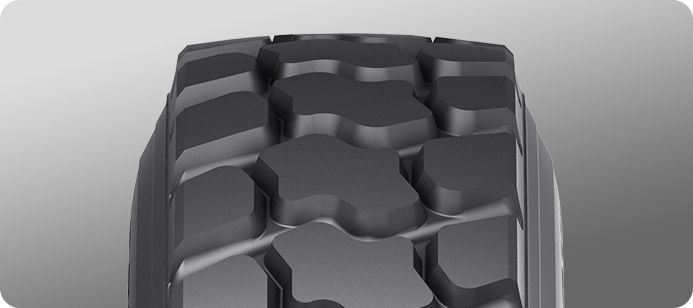

Traction-type pattern, suitable for non-paved pavement
Product Technical Parameters
| Tire specification | Ply | Load Index | Load(kg | Air Pressure(kpa) | Speed Level | Measured rims | Allowable rims | New tire tread depth(mm) | 行驶面宽度(mm) | New tire designed size(mm | |||
| Single Tire | Double Tire | Single Tire | Double Tire | Section width | Outer diameter | ||||||||
| 12.00R20 | 18 | 154/151 | 3750 | 3450 | 830 | 830 | J | 8.5 | 9.5, 8.50V | 21.5 | 244 | 315 | 1136 |
| 12.00R20 | 20 | 156/153 | 4000 | 3650 | 900 | 900 | K | 8.5 | 9.5, 8.50V | 21.5 | 244 | 315 | 1136 |
| 13R22.5 | 18 | 154/151 | 3750 | 3450 | 830 | 830 | J | 9.75 | 9 | 21.5 | 248 | 320 | 1124 |
