> Products > Long Haul Tyre > 117

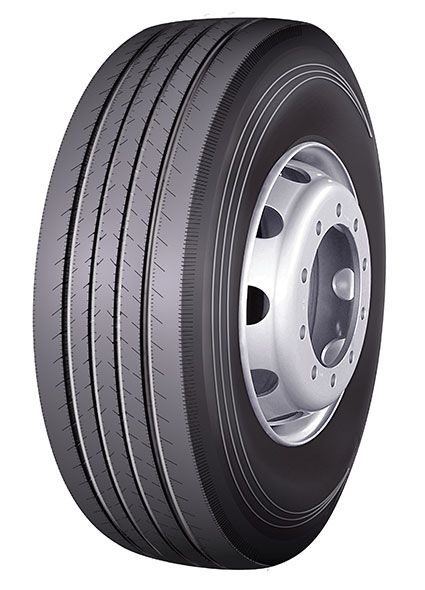

117
High wearproof formula design
、 High wearproof formula design, can provide the tire with excellent high-speed performance and excellent wear resistance.
、 Four-ply belt construction provides excellent high-speed durability and ride comfortability; unique bead structure provides good bead durability.
、 Highway pattern, suitable for highway, general road.
Wheel Positions
Recommended
Allowed
Product Technical Parameters
| Tire specification | Ply | Load Index | Load(kg | Air Pressure(kpa) | Speed Level | Measured rims | Allowable rims | New tire tread depth(mm) | Drivingsurfacewidth、mm、 | New tire designed size(mm | |||
| Single Tire | Double Tire | Single Tire | Double Tire | Section width | Outer diameter | ||||||||
| 12R22.5 | 18 | 152/149 | 3550 | 3250 | 930 | 930 | L | 9 | 8.25 | 16 | 230 | 300 | 1085 |
| 13R22.5 | 18 | 154/151 | 3750 | 3450 | 830 | 830 | M | 9.75 | 9 | 15 | 248 | 320 | 1124 |
| 295/60R22.5 | 18 | 149/146 | 3250 | 3000 | 900 | 900 | K | 9 | 9.75 | 14.5 | 246 | 292 | 926 |
| 295/60R22.5 | 18 | 150/147 | 3250 | 3000 | 900 | 900 | M | 9 | 9.75 | 14.5 | 246 | 292 | 926 |
| 315/60R22.5 | 18 | 152/148 | 3550 | 3150 | 900 | 900 | K/M | 9.75 | 9 | 14.5 | 246 | 313 | 950 |
| 315/70R22.5 | 18 | 154/150 | 3750 | 3350 | 900 | 900 | M | 9 | 9.75 | 15 | 255 | 312 | 1014 |
| 315/70R22.5 | None | 156/150 | 4000 | 3350 | 900 | 900 | M | 9 | 9.75 | 15 | 255 | 312 | 1014 |
