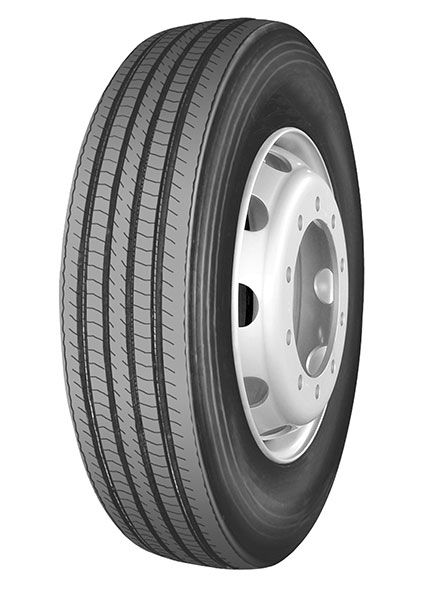

116
High wearproof formula design
、 The high wearproof formula design can provide the tire with excellent high-speed performance and excellent wear resistance.
、 Four-ply belt construction provides excellent high-speed durability and ride comfortability; unique bead structure design provides the tire with excellent bead durability performance.
、 Highway pattern, suitable for highway, general road and urban highway.
Wheel Positions
Recommended
Allowed
Product Technical Parameters
| Tire specification | Ply | Load Index | Load(kg | Air Pressure(kpa) | Speed Level | Measured rims | Allowable rims | New tire tread depth(mm) | 行驶面宽度(mm) | New tire designed size(mm | |||
| Single Tire | Double Tire | Single Tire | Double Tire | Section width | Outer diameter | ||||||||
| 11R22.5 | 16 | 148/145 | 3150 | 2900 | 850 | 850 | M | 8.25 | 7.5 | 15 | 205 | 279 | 1054 |
| 11R24.5 | 16 | 149/146 | 3250 | 3000 | 830 | 830 | M | 8.25 | 7.5 | 15 | 205 | 279 | 1104 |
| 275/70R22.5 | 16 | 148/145 | 3150 | 2900 | 900 | 900 | M | 8.25 | 9 | 15 | 220 | 276 | 958 |
| 285/75R24.5 | 16 | 147/144 | 3075 | 2800 | 760 | 760 | M | 8.25 | 7.5 | 15 | 210 | 283 | 1050 |
| 295/75R22.5 | 16 | 146/143 | 3000 | 2725 | 830 | 830 | M | 9 | 8.25 | 15 | 210 | 297 | 1014 |
