> Products > Long Haul Tyre > 168

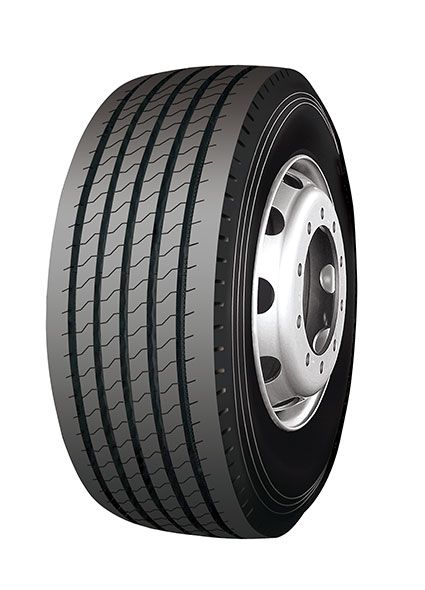

168
Wide base pattern
Wheel Positions
Recommended
Allowed
Technical
Features

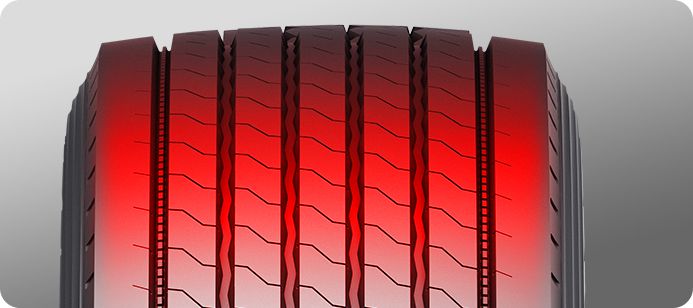

High performance formulation can provide tires with excellent wear resistance
Technical
Features
Wide base tires、 used to replace double tires with single tires
Technical
Features

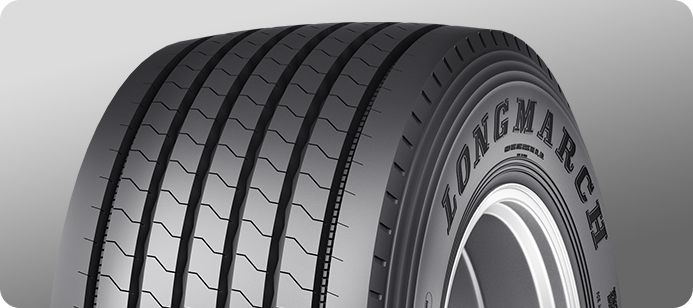

Highway pattern, suitable for highway, general road
Product Technical Parameters
| Tire specification | Ply | Load Index | Load(kg | Air Pressure(kpa) | Speed Level | Measured rims | Allowable rims | New tire tread depth(mm) | Driving surface width、mm) | New tire designed size(mm | |||
| Single Tire | Double Tire | Single Tire | Double Tire | Section width | Outer diameter | ||||||||
| 385/55R19.5 | 156 | 4000 | 900 | J | 12.25 | 11.75 | 15 | 310 | 386 | 919 | |||
| 385/55R19.5 | 160 | 4000 | 900 | K | 12.25 | 11.75 | 15 | 310 | 386 | 919 | |||
| 385/55R22.5 | 160(158) | 4500 | 900 | K(L) | 12.25 | 11.75 | 15 | 310 | 385 | 996 | |||
| 385/65R22.5 | 22 | 162 | 4750 | 930 | K | 11.75 | 12.25 | 15 | 286 | 389 | 1072 | ||
| 385/65R22.5 | 20 | 160(158) | 4500 | 900 | K(L) | 11.75 | 12.25 | 15 | 286 | 389 | 1072 | ||
| 435/50R19.5 | 160 | 4500 | 900 | J | 14 | 15 | 13 | 375 | 438 | 931 | |||
| 445/45R19.5 | 160 | 4500 | 900 | J | 15 | 14 | 380 | 446 | 895 | ||||
| 445/45R19.5 | 162 | 4700 | 950 | E | 15 | 14 | 380 | 446 | 895 | ||||
